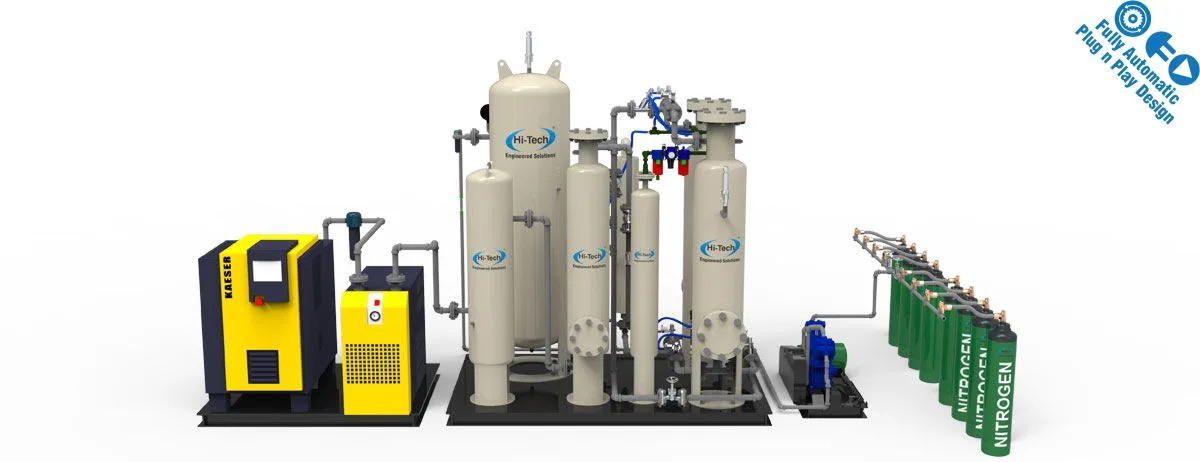

‘Hi-Tech’ on-site Nitrogen generators produce gaseous Nitrogen from compressed air on-site and offer a cost-effective, reliable and safe alternative to traditional Nitrogen gas supplies such as cylinders or cryogenic liquid. Hi-Tech’s Nitrogen generators are available in standard models with capacity ranging from 0.27m3/hr to 60m3/hr at 99.9999% purity with cylinder filling pressures up to 200 Bars. The design is made for round the clock 24/7 operation. Each generator is equipped with automatic start & stop function, enabling the generator to start and stop automatically according to the Cylinder consumption.

Why Hi-Tech Gas Plants

SAFETY
RELIABILITY
RETURN ON INVESTMENT
EASE OF OPERATION
INSTALLATION TIME
Economics
Cost saving in the range of 40-70% over liquid supply Systems and up-to 80% for Cryogenic Plant

Highest Reliability
The PSA system provides the highest reliability the control system allows for the production of nitrogen gas at the specified flow & purity within a short time of demand using a simple push button.this on/off operating capability is not available from cryogenic plants.

Easy Partial Load Operation
The plant is automatically adjusted to the actual product flow requirement and operates in an energy-saving partial load mode.

Energy Efficiency
Lower energy consumption than crygenic units.

Fully Automatic Operation
PLC-based control system controls the purity and the flow by automatically adjusting the cycle time of the PSA system.

Remote Control
A Profinet or LAN port is provided for the communication with complete Plant DCS with an optional Modern Board for Remote Control.

  • Meets Worldwide Manufacturing Standards
  • Critical process parameters monitored and recorded every 500 milliseconds.
  • Dependable Highest Reliability with Energy Efficiency.
  • Compact design with Easy and simple controls
  • Pre-piped systems for Easy and simple installation
  • Automatic operation-one touch starts up and shut down.
  • Containerized Shipments right from the factory
  • Ready to use upon delivery
  • Touchscreen Control Panel
  • Easy to maintain with Continuously monitored Purity & Flow
  • Optional Cylinder filling Ramp with Emergency Disaster Recovery
  • On-site start-up assistance by Hi-tech’s Engineered  Solutions technicians anywhere in the world.
Model Percentage Nitrogen Purity with Max Working pressures up-to 3200 PSIG
95 97 98 99 99.5 99.9 99.95 99.99 99.995 99.999 99.9995 99.9999
N-HP-3 5.00 4.00 3.50 3.00 2.49 1.67 1.38 0.78 0.62 0.44 0.39 0.27
N-HP-7 14.00 11.00 9.00 7.00 6.40 4.30 3.54 2.00 1.61 1.12 1.00 0.70
N-HP-16 27.00 24.00 20.00 16.00 13.51 9.08 7.47 4.22 3.39 2.36 2.11 1.49
N-HP-25 40.00 35.00 30.00 25.00 20.62 13.86 11.41 6.44 5.17 3.61 3.22 2.27
N-HP-35 60.00 50.00 45.00 35.00 32.00 21.50 17.70 10.00 8.03 5.60 5.00 3.52
N-HP-55 90.00 80.00 70.00 55.00 45.51 30.58 25.17 14.22 11.42 7.96 7.11 5.01
N-HP-75 135.00 120.00 100.00 75.00 63.00 45.00 39.00 19.80 17.70 13.00 10.80 7.86
N-HP-130 225.00 200.00 160.00 130.00 101.24 72.31 62.67 31.82 28.44 20.89 17.36 12.63
N-HP-180 315.00 270.00 230.00 180.00 121.96 90.96 77.49 43.79 39.07 31.96 30.19 21.31
N-HP-280 450.00 400.00 330.00 280.00 197.15 147.03 125.27 70.79 63.15 51.67 48.80 34.45
N-HP-400 675.00 575.00 450.00 400.00 267.43 199.45 169.93 96.02 85.67 70.09 66.20 46.73
N-HP-500 900.00 770.00 650.00 500.00 343.40 256.10 218.20 123.30 110.00 90.00 85.00 60.00

Capacity Stated in Sm3/hr, Conversation rates for nitrogen– 1 Sm3 = 0.92 Nm3, 1 Nm3 = 1.25 Kg

Optional Gas Nitrogen to Liquid Nitrogen Liquefier.

VPSA Based Systems also available, Custom Built Models also available

Note- Specifications are subject to change without prior notice.

SCADA Based Automated Interference
GSM Modem or Remote control Mode
Containerized or Trailer Mounted Plant
