The O series  Ozone Generator is capable of producing ozone at up to 12% by weight, at 25-5000 SCFH of oxygen flow..

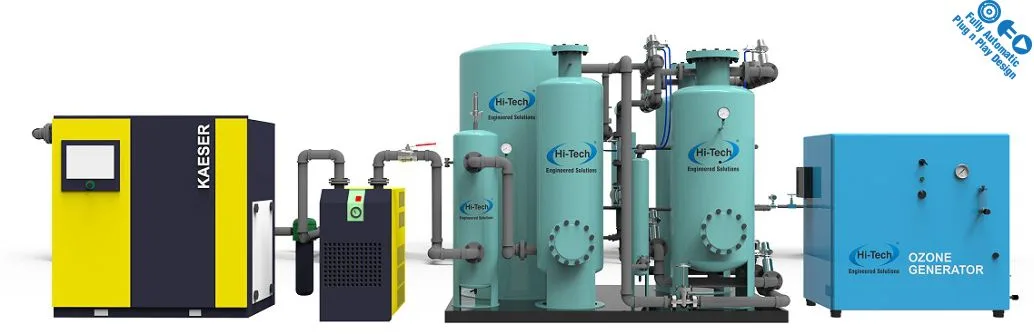

These are Turn-Key ozone generator with an integrated oxygen generators and air compressor. The O series  ships ready to use, just plug it in, and it will produce oxygen and ozone from ambient air.

Easily Operated and Maintained

Hi-Tech’s Ozone Generators Can be operated and maintained without extensive technical knowledge or training. our easy to follow manuals,, videos andon-site training will enable your staff to properly calibrate and maintain the whole system. Routine maintenance is limited to normal air compressor upkeep and periodic cleaning and replacement of filter elements etc.

Why Hi-Tech Gas Plants

SAFETY
RELIABILITY
RETURN ON INVESTMENT
EASE OF OPERATION
INSTALLATION TIME
  • Compact design
  • Easy and simple controls
  • Automatic operation-one touch start up and shut down
  • Produces ozone from integrated Oxygen Concentrator
  • Designed to provide high dissolved ozone levels
  • High efficiency with excellent mass transfer of ozone
  • Easy and simple installation
  • Stainless Steel or painted steel enclosures
  • Ready to use upon delivery
  • Optional HMI Touchscreen
  • Enclosure protects from harsh or wash-down environments
  • Contains a Water Cooled Ozone Generator with closed loop water chiller
*6% Ozone w/w

Our Generators Provides from 3 to 595 lbs of ozone  per Day. Use the following Table to determine which model is most suitable to your application.

MODEL AIR

SCFM

 OXYGEN SCFH OZONE PRODUCTION* SPARGE PRESSURE COOLING POWER CONSUMED
Lbs/Day g/h
O-25 6.5 25 3 56 30PSI (MAX-50PSI) WATER 2 KW/h
O-50 12 50 6 112 30PSI (MAX-50PSI) WATER 4 KW/h
O-75 17 75 9 168 30PSI (MAX-50PSI) WATER 5 KW/h
O-100 22 100 12 225 30PSI (MAX-50PSI) WATER 6.5 KW/h
O-175 32 175 21 393 30PSI (MAX-50PSI) WATER 10.5 KW/h
O-250 45 250 30 561 30PSI (MAX-50PSI) WATER 15 KW/h
O-375 68 375 45 842 30PSI (MAX-50PSI) WATER 21.5 KW/h
O-500 88 500 60 1,123 30PSI (MAX-50PSI) WATER 28 KW/h
O-650 118 650 77 1,460 30PSI (MAX-50PSI) WATER 36.5 KW/h
O-750 133 750 89 1,684 30PSI (MAX-50PSI) WATER 42 KW/h
O-1000 175 1,000 119 2,245 30PSI (MAX-50PSI) WATER 56 KW/h
O-1250 225 1,250 149 2,807 30PSI (MAX-50PSI) WATER 71 KW/h
O-1500 280 1,500 179 3,368 30PSI (MAX-50PSI) WATER 84 KW/h
O-2000 425 2,000 238 4,491 30PSI (MAX-50PSI) WATER 113 KW/h
O-5000 1000 5,000 595 11,227 30PSI (MAX-50PSI) WATER 283 KW/h

Atlas Copco Make Screw compressor

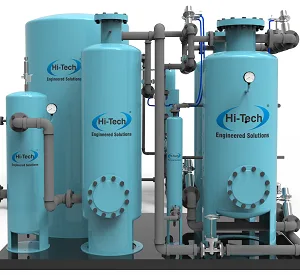

Process Skid

Kaesar Make screw Compressor
