Since 1994, Hi-Tech Gas Plants are India’s Best, Leading manufacturer and Exporter for PSA Oxygen Plants. Our plants offer cost-effective alternatives to High-pressure gas cylinders and Cryogenic liquid oxygen tanks. We are manufacturing modified PSA oxygen plants as per our customer demand with the latest technology. Hi-Tech Gas Plants PSA Oxygen Generators are available in all capacities starting from 20 LPM up to 8500 LPM or 1nm3/hr up to 500 nm3/hr producing 93-96% of pure oxygen for your industry or for hospitals. Our plant calculates automatically and starts/stops as per consumption of the oxygen. HTGP’s PSA Oxygen plants are designed to run 24 x 7 hours.
Why Hi-Tech Gas Plants?
No Raw Material is Requirement
The production of industrial and medical grade oxygen required no raw material. For the separation of oxygen from processed and compressed air, Our Hi-tech Gas plant uses air from the atmosphere.
Durability and Quality
In order to ensure a quality product with innovative productivity of oxygen, every generator of Hi-Tech Gas is analyzed and tested over new CFD software designed by our company.
Instant demand for Oxygen
For the instant production of oxygen from the PSA towers, we have introduced a one-touch push button system to start the cycles automatically directly from the control panel or from your mobile phone.
Eco-Friendly
In India, Hi-Tech Gas Plants are consuming very low electric energy. Our PSA oxygen plants are automatically joined with the actual product flow in easy partial load operation of requirements and operate for energy-saving partial load mode.
Skid Mounted
HTGP plants are Pre-piped over the steel skid, Our customer only has to connect the electric cable to our PSA Oxygen plant’s control panel.
Plug and Play design
Hi-Tech Gas plants are India’s number one manufacturer for the plug-and-play type PSA oxygen plants / PSA O2 Generators, which are directly controlled by any smart electronic device and full HD 10″ HMI screen attached to our control system.
- Our Plant meets worldwide manufacturing standards with certifications.
- Save your pocket up to 95% instead of wasting money on cylinders and Cryo tanks.
- Eco-Friendly towards electric energy and to the atmosphere.
- Skid-mounted plug-and-play design with Easy controls and simple installation.
- Fully Automatic operation also can be controlled by any smart device.
- Hi-Tech Gas Plants calculate and adjust variable Demand as per the consumption.
- Plug and Play design.
- 10″ full HD HMI can be customized as per customer needs with customer embedded logo.
- Our PSA Oxygen plants are fully loaded with sensors for ease of maintenance.
- Live purity update after every 100 mili-second.
- Our plant has plan B if anything mishappened, our plant switch automatically to the backup cylinders for continuous operation for your industry.
Scope of supply mainly comprises of following-
- Air Screw Compressor
- Air Drier
- Four stage Filtration
- Absorber vessels with Pre-Piped Skid
- Specially Selected Zeolites for better production.
- Oxygen Storage Tank
- 10″ Touchscreen Control system
- Oxygen sensor made in the UK.
- Skid-mounted, pre-piped oxygen plant.
- And all standard accessories.
A Full Line of Oxygen Generators Available
Our Generators Provides from 1 to 105 Nm3/hr of Oxygen. Use the following Table to determine which model is most suitable to your application.
| MODEL | AIR CFM |
93~95% OXYGEN | OUTLET PRESSURE WITH BOOSTER |
TANK SIZE (Gallons) |
POWER CONSUMED | ||
| SCFH | LPM | Nm3/hr | |||||
| Oxy-01 | 13.6 | 50 | 27.2 | 1 | 3,000 PSI Max. | 60 | 2.4 KW |
| Oxy-75 | 17 | 75 | 36 | 1.5 | 3,000 PSI Max. | 60 | 3 KW |
| Oxy-100 | 22 | 100 | 47 | 3 | 3,000 PSI Max. | 80 | 4.8 KW |
| Oxy-175 | 32 | 175 | 83 | 5 | 3,000 PSI Max. | 120 | 7.8 KW |
| Oxy-250 | 45 | 250 | 118 | 7 | 3,000 PSI Max. | 120 | 10.8 KW |
| Oxy-375 | 68 | 375 | 177 | 10 | 3,000 PSI Max. | 120 | 15.6 KW |
| Oxy-500 | 88 | 500 | 236 | 13 | 3,000 PSI Max. | 200 | 20.28 KW |
| Oxy-650 | 118 | 650 | 307 | 17 | 3,000 PSI Max. | 400 | 26.52 KW |
| Oxy-750 | 133 | 750 | 354 | 20 | 3,000 PSI Max. | 400 | 31.2 KW |
| Oxy-1000 | 175 | 1,000 | 472 | 26 | 3,000 PSI Max. | 400 | 40.56 KW |
| Oxy-1250 | 225 | 1,250 | 590 | 33 | 3,000 PSI Max. | 660 | 51.48 KW |
| Oxy-1500 | 320 | 1,500 | 708 | 39 | 3,000 PSI Max. | 660 | 60.84 KW |
| Oxy-2000 | 425 | 2,000 | 943 | 53 | 3,000 PSI Max. | 660 | 79.2 KW |
| Oxy-3000 | 625 | 3,000 | 1,415 | 79 | 3,000 PSI Max. | 1,060 | 114 KW |
| Oxy-4000 | 830 | 4,000 | 1,890 | 105 | 3,000 PSI Max. | 1,220 | 151.2 KW |
-Optional 99% purity, Custom Built Models also Available
Note- Specifications are subject to change without prior notice.
Stated flow in Nm³/hour are for operation with reference to 15°C, 981 mbar. Inlet pressure 7 barG. Flow variance ±5%Custom Built Models also Available
Capacity of the plant is stated at 30°C ambient air temperature. Variance±5%
SCADA Based Automated Interference
Remote control Mode
Containerized or Trailer Mounted Plant
Atlas Copco Make Screw compressor

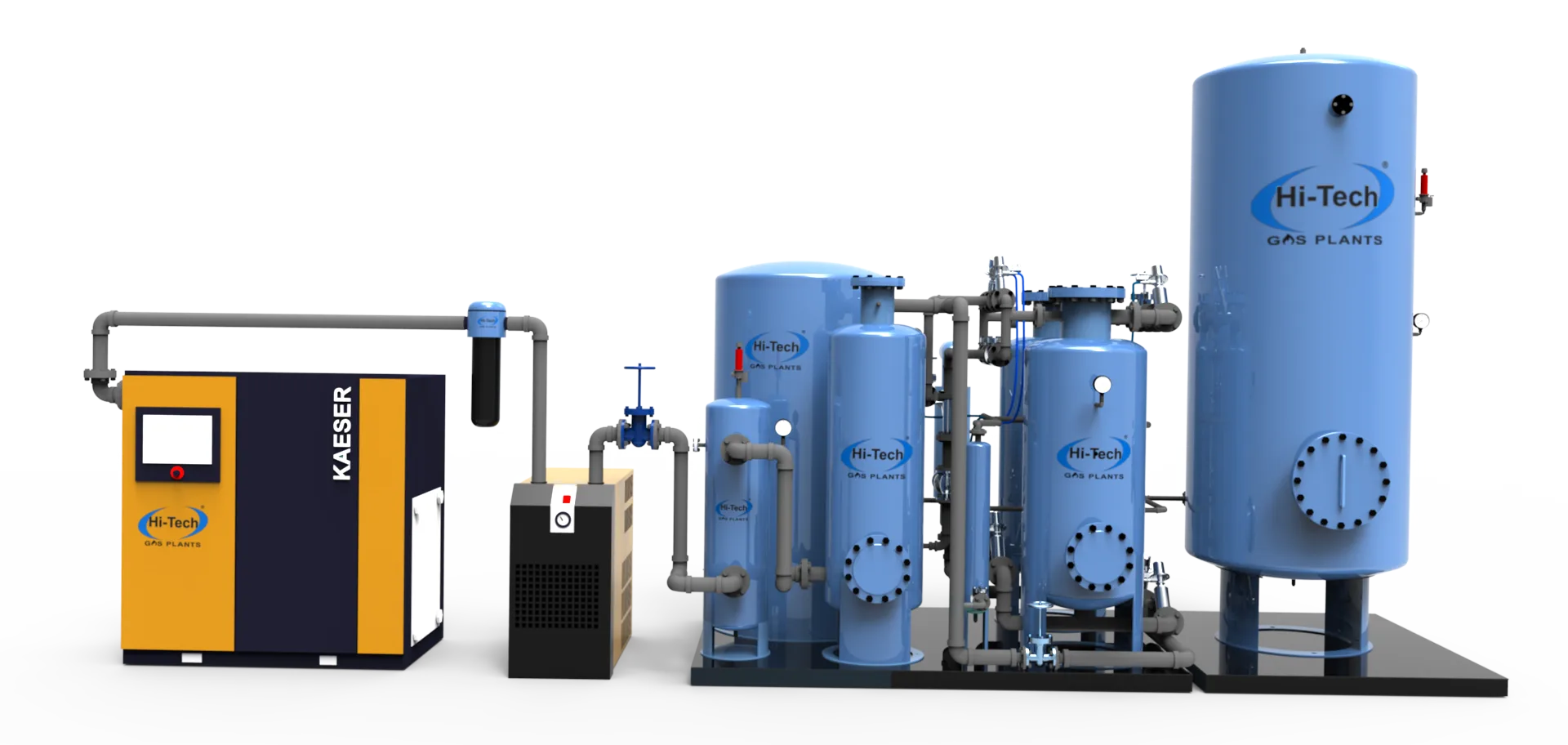

PSA Oxygen plant Process Skid
