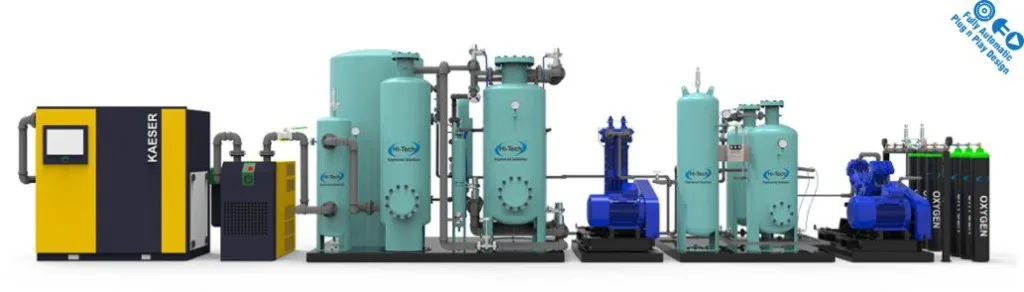

99% Pure Oxygen Generator with Cylinder Filling: Hi-Tech has a wide range of High Purity Oxygen filling stations used for filling cylinders of any size up to 200 bar. The filling capacity ranges from 2 to 200 cylinders per day.
The system can be set up to fill the hospital pipeline directly and use the filling ramp as a backup system. Oxygen cylinders can be filled simultaneously or during hours with low consumption
Why Hi-Tech Gas Plants
There is no Raw Material Required to produce Industrial/Medical grade Oxygen, as plant uses air from atmosphere to separate oxygen from Processed air.
Quality & Durability
Each Generator is Analyzed & Tested over Latest CFD Software for dynamic loading in order to ensure Quality product with SMART Productivity of Oxygen Gas.
Oxygen on demand
Production of oxygen at the specified flow and purity for a short time of demand by simple push button.
Energy efficiency
The PSA process is characterized by low specific energy consumption. Easy partial load operation PSA Generators are fully automatically adjusted to the actual product flow requirements and operate in an energy-saving partial load mode.
Platform Mounted
Generator is supplied Pre-piped over a platform in order to cuts down installation time, only to connect compressor line and plant is ready to use.
High availability
PSA Generator provide supreme availability by using reliable components such as Screw Compressors proprietary switching valves.
Fully automatic operation
The PLC based control system with its sophisticated software controls purity and flow by adjusting the cycle time automatically.
Cost Saving of up-to 80% from Liquid/Cylinder supply
Dependable Highest Reliability with Energy Efficiency
Compact design with Easy and Simple controls
Pre-piped systems for Easy and simple installation
Automatic operation-one touch start up and shut down
Easily Partial Load Operation in variable Demand Flows
Ready to use upon delivery
Touchscreen Control Panel
Optional Remote Control or GSM Interface
Easy to maintain with Continuously monitored Purity & Flow
Optional Cylinder filling Ramp with Emergency Disaster Recovery
Containerized Shipments right from factory.
Critical process parameters monitored and recorded every 500 milliseconds.
Automatic turndown capability from 100% to 0% flow capacity.
Designed in accordance with local standards.
Automatic and unattended operation.
On-site start-up assistance by Hi-Tech’s Engineered Solutions technicians anywhere in the World.
Air Compressor
Air Drier with Pre-Filters
Absorber vessels with Pre-Piped Skid
Specially Selected adsorbent material
Oxygen Booster Pump with Cylinder filling manifold
Touchscreen Control system
Oxygen product analyzer
Interconnecting pipelines
Our Generators Provides from 1 to 105 Nm3/hr of Oxygen. Use the following Table to determine which model is most suitable to your application.
| MODEL | AIR CFM |
99~99.5% OXYGEN | OUTLET PRESSURE WITH BOOSTER |
TANK SIZE (Gallons) |
POWER CONSUMED | ||
| SCFH | LPM | Nm3/hr | |||||
| HOC-50 | 12 | 50 | 24 | 1 | 3,000 PSI Max. | 60 | 4 KW |
| HOC-75 | 17 | 75 | 36 | 1.5 | 3,000 PSI Max. | 60 | 5 KW |
| HOC-100 | 22 | 100 | 47 | 3 | 3,000 PSI Max. | 80 | 8 KW |
| HOC-175 | 32 | 175 | 83 | 5 | 3,000 PSI Max. | 120 | 13 KW |
| HOC-250 | 45 | 250 | 118 | 7 | 3,000 PSI Max. | 120 | 18 KW |
| HOC-375 | 68 | 375 | 177 | 10 | 3,000 PSI Max. | 120 | 26 KW |
| HOC-500 | 88 | 500 | 236 | 13 | 3,000 PSI Max. | 200 | 33.8 KW |
| HOC-650 | 118 | 650 | 307 | 17 | 3,000 PSI Max. | 400 | 44.2 KW |
| HOC-750 | 133 | 750 | 354 | 20 | 3,000 PSI Max. | 400 | 52 KW |
| HOC-1000 | 175 | 1,000 | 472 | 26 | 3,000 PSI Max. | 400 | 67.6 KW |
| HOC-1250 | 225 | 1,250 | 590 | 33 | 3,000 PSI Max. | 660 | 85.8 KW |
| HOC-1500 | 320 | 1,500 | 708 | 39 | 3,000 PSI Max. | 660 | 101.4 KW |
| HOC-2000 | 425 | 2,000 | 943 | 53 | 3,000 PSI Max. | 660 | 132 KW |
| HOC-3000 | 625 | 3,000 | 1,415 | 79 | 3,000 PSI Max. | 1,060 | 190 KW |
| HOC-4000 | 830 | 4,000 | 1,890 | 105 | 3,000 PSI Max. | 1,220 | 252 KW |
Note- Specifications are subject to change without prior notice.
Custom Built Models also Available
Stated flow in Nm³/hour are for operation with reference to 15°C, 981 mbar. Inlet pressure 7 barG. Flow variance ±5%
Capacity of the plant is stated at 30°C ambient air temperature. Variance±5%
SCADA Based Automated Interference
Remote control Mode
Containerized or Trailer Mounted Plant
Atlas Copco Make Screw compressor
Process Skid
